26 Ports 100M PoE Switch with 2 Giga*RJ45 +1*SFP-extended distance 250m

  • 24*10/100M + 2*1000MRJ45+ 1*1000M SFP Port PoE Switch,1-24 ports support af/at
  • The power supply total is 300W;
  • Model: TS-SF1224P-250M
Catégorie : Étiquettes : , , ,

Product Description

Best Selling 26 Ports 100M PoE Switch with 2 Giga*RJ45 +1*SFP                                                  datasheet

Model: TS-SF1224P-250M           with extend 300meter distance



  • 24*10/100M + 2*1000MRJ45+ 1*1000M SFP Port PoE Switch,1-24 ports support af/at;
  • Comply with IEEE 802.3, IEEE 802.3u, IEE802.3ab,IEE802.3zstandards;
  • Support 10M/250 meters long distance transmission&Vlan;
  • PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port,Maximum power: 30W/port;
  • Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
  • The power supply total is 300W;
Model TS-SF1224P-250M
Fixed Port

24*10/100Base-T/TX PoE ports (Data/Power)

2*10/100/1000Base-T/TX Uplink RJ45 ports (Data)

1*1000Base-X Uplink SFP ports (Data)
POE Port Port 1-24 support PoE
Function The port 1-24 support 10M/250 meters long distance transmission and Vlan.
Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000base-X;

IEEE802.3x.
Ethernet Port Feature 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature 1000Base-x
Forwarding Mode Store and Forward
Switching Capacity 10.8Gbps
MAC 8K
Buffer Memory 2M
Jumbo frames 10K
Twisted Pair Transmission

10BASE-T: Cat5 UTP (≤250 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)
Power Supply Pin Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port 30W/15.4W
Total PWR / Input Voltage 300W (100-240V)
Power Consumption Standby:<5W; Full load:<300W
LED Indicator Power indicator: PWR (Green); Network indicator: 1-24(Link/Act)/ (Green),25-27 (Link/Act)/ (Green)
Power Supply Built in switching power supply, AC100~240V 50-60Hz
Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Dimension 310*181*44mm
Net /Gross Weight <2.5kg / <3.5kg
Installation Method desktop type, wall mounted,19-inch 1U cabinet installation
Protection

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
Protection level IP30
Certification CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS



Accessories

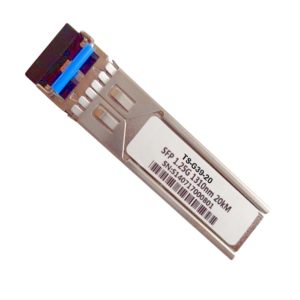

SFP,

SFP 1.25 Giga MM, SM, dual fiber
