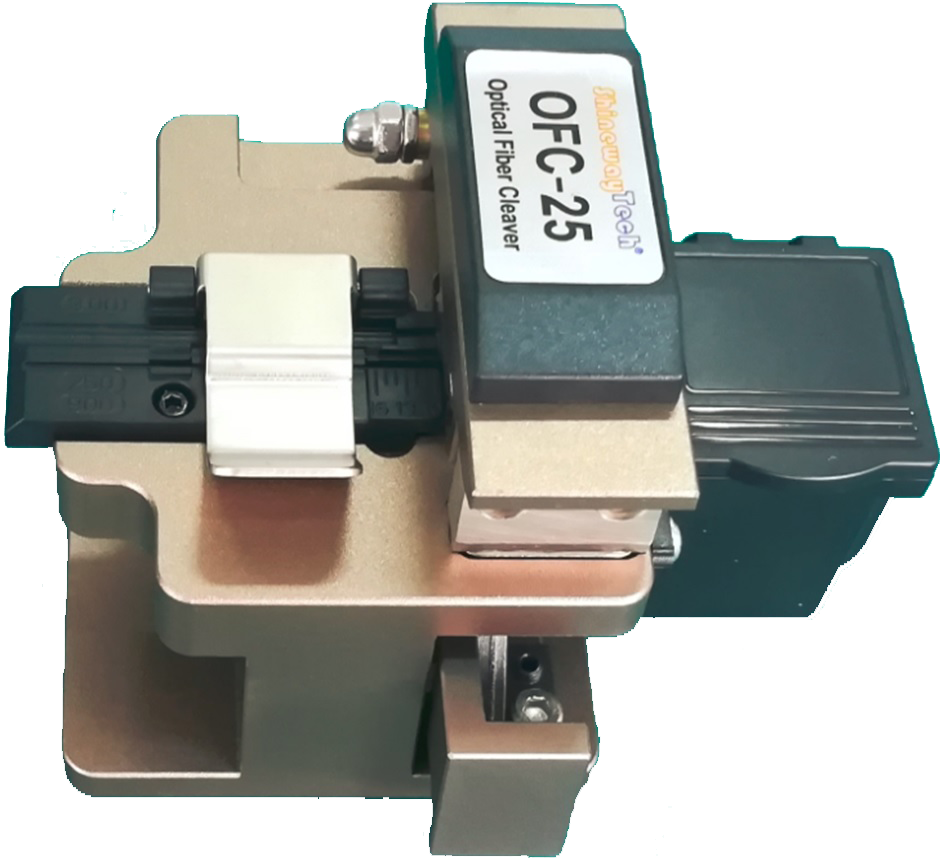

OOFC-25 Optical Fiber Cleaver
u Compact & handy outfit design
u Easy and simple 2 steps operation
u Perfect 90 degree cleaving angle
u Simplified blade adjustment & replacement
u Available with fiber scrap collector
u Robust & shock resistant
Specifications :
Model
OFC-25
Fiber Count
Single Fiber
Applicable Fiber Cable
0.25mm/0.9mm/3mm/Drop Cable
Cladding Diameter
125µm
Cleaved Length
9~24mm
Typical Cleaved Angle
≤ 0.8°
Typical Blade Life Span
Total 48,000 Fiber Cleaves
(1,000 fiber for 1 step * total 24 points * 2 heights)
Operation Steps
2 steps / Auto Pushback Slider Block
Fiber Holder
Universal Fiber Holder
Collector
Manual Fiber Scrap Collection
Dimensions (H×W×D)
58×63×68mm (without collector)
58×92×68mm (with collector)
Weight
280g
