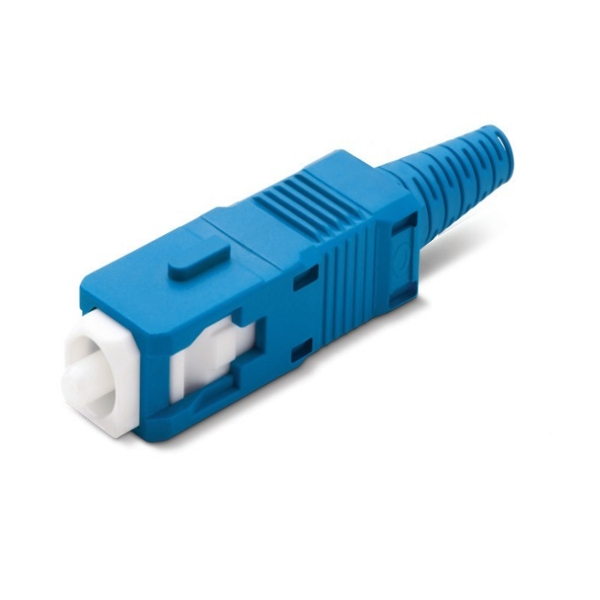

Connecteur fibre optique à COLLE, SM, SC.
– Superior qualified standard polishing;
– ROHS Compliant
– Superior qualified standard PC, APC, UPC, SPC polishing;
– 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
– 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
– φ0.9mm, φ2.0mm, φ3.0mm cable optional;
– Single mode (9125) or multi mode (50125 or 62.5125) fiber available;
– FC, SC, LC, MU, ST, MT-RJ, etc connector;
– Simplex and duplex connector available;
– Available in fiber bunch, ribbon fan-out, pigtail available;
– Meets ISO9001, ROHS and Bell core GR 326-core standards;
– Customized specifications are welcomed.
CATV, metro Test equipment
Telecommunication networks;
Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination.
