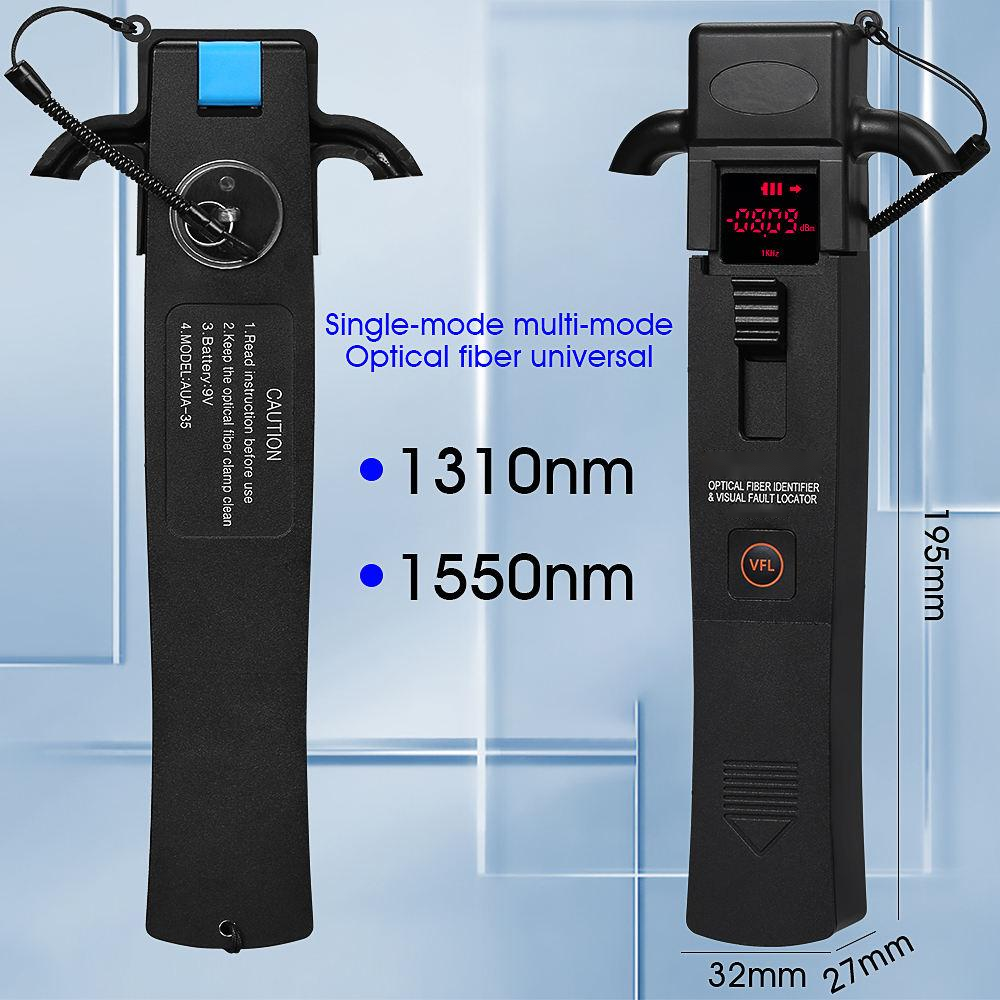

GY-35 Optical Fiber Identifier

Identify the propagation direction of light.
 Equipped with visual fault locator function.

 Test sensitivity -40dBm to 10dBm.

LED display

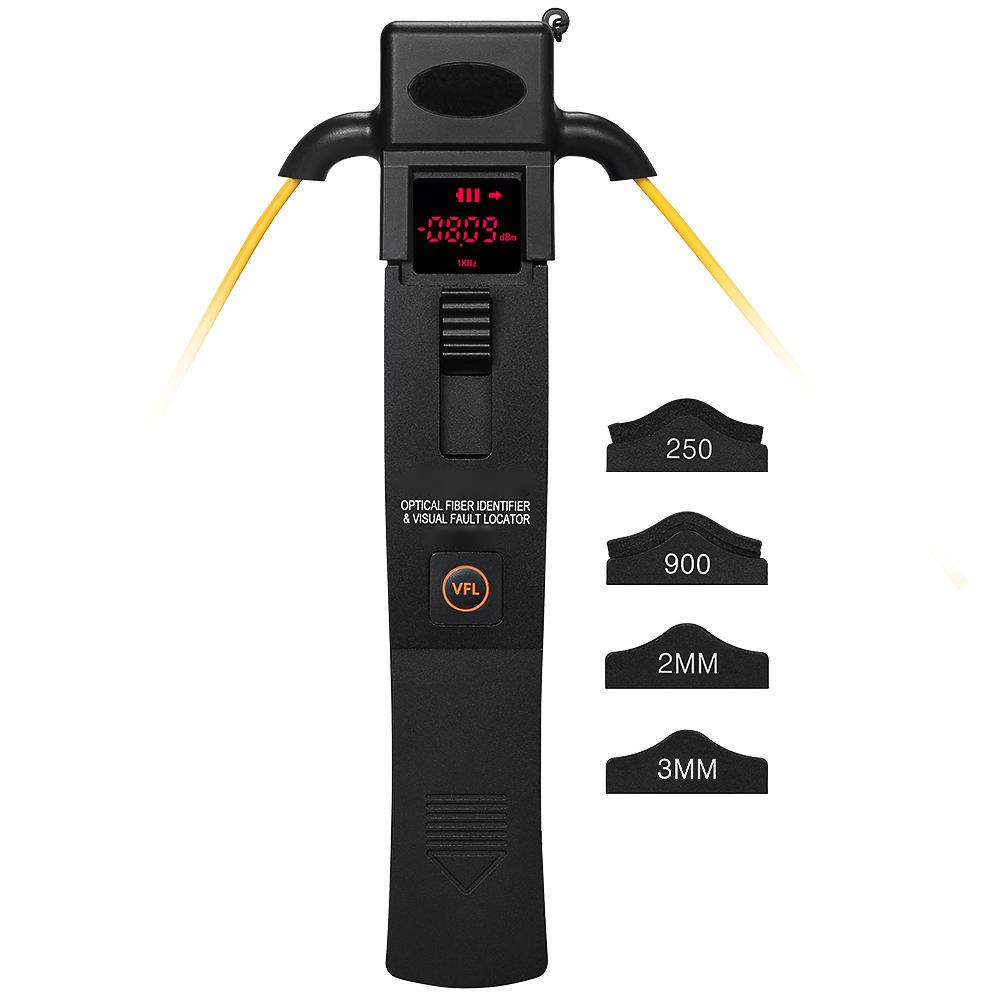

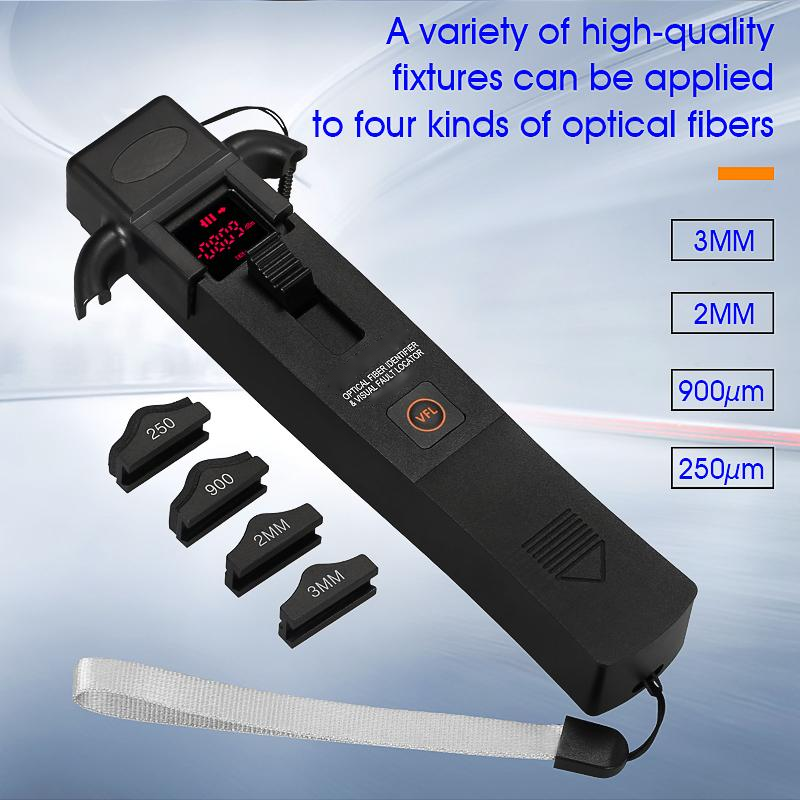

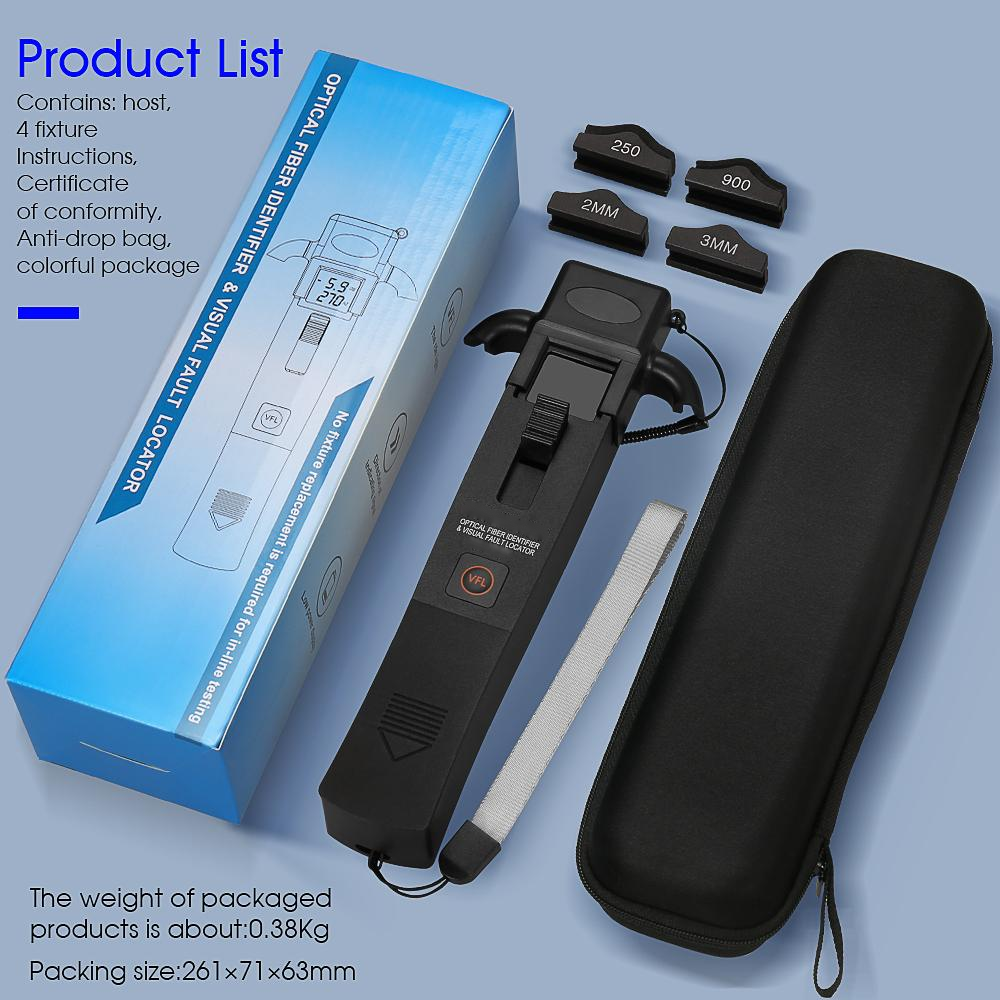

4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber.

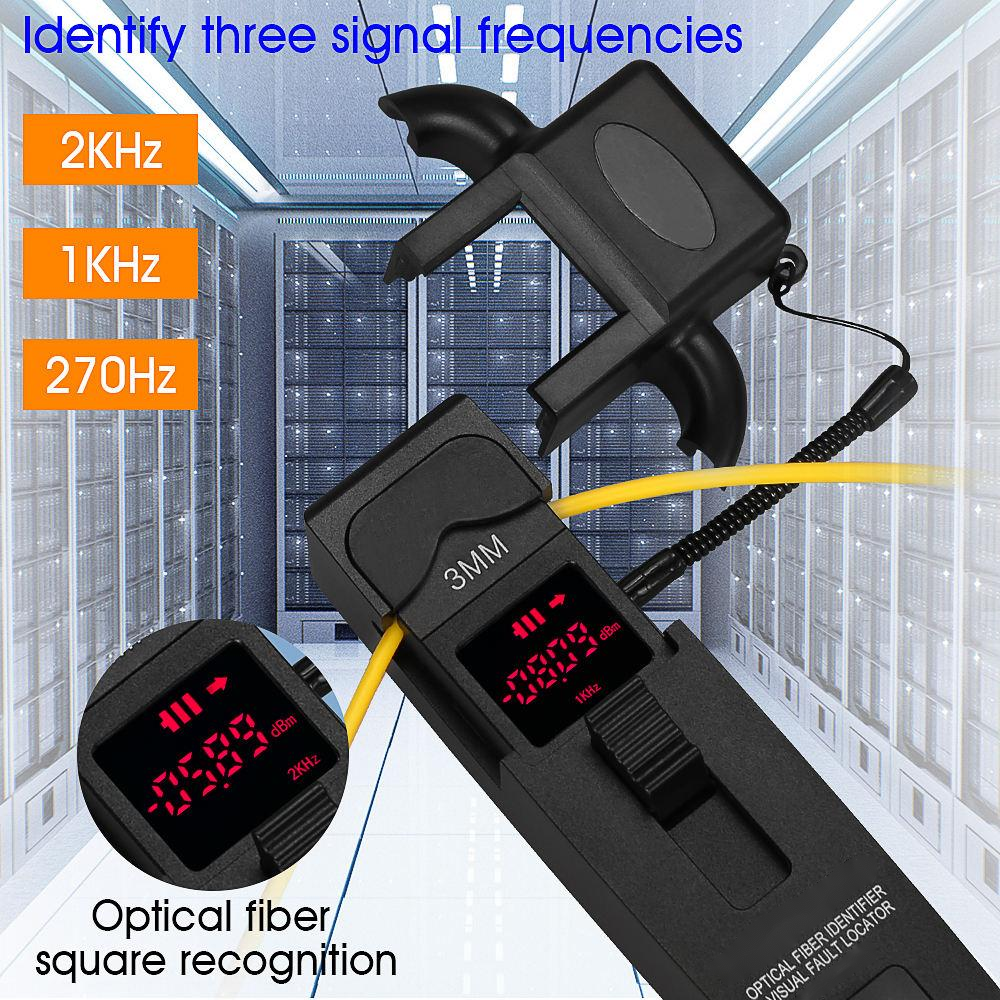

 Recognize the signal of 270Hz, 1KHZ,2KHz.

Catégorie :

Product Description

1. Display relative optical power.

2. Identify the propagation direction of light.

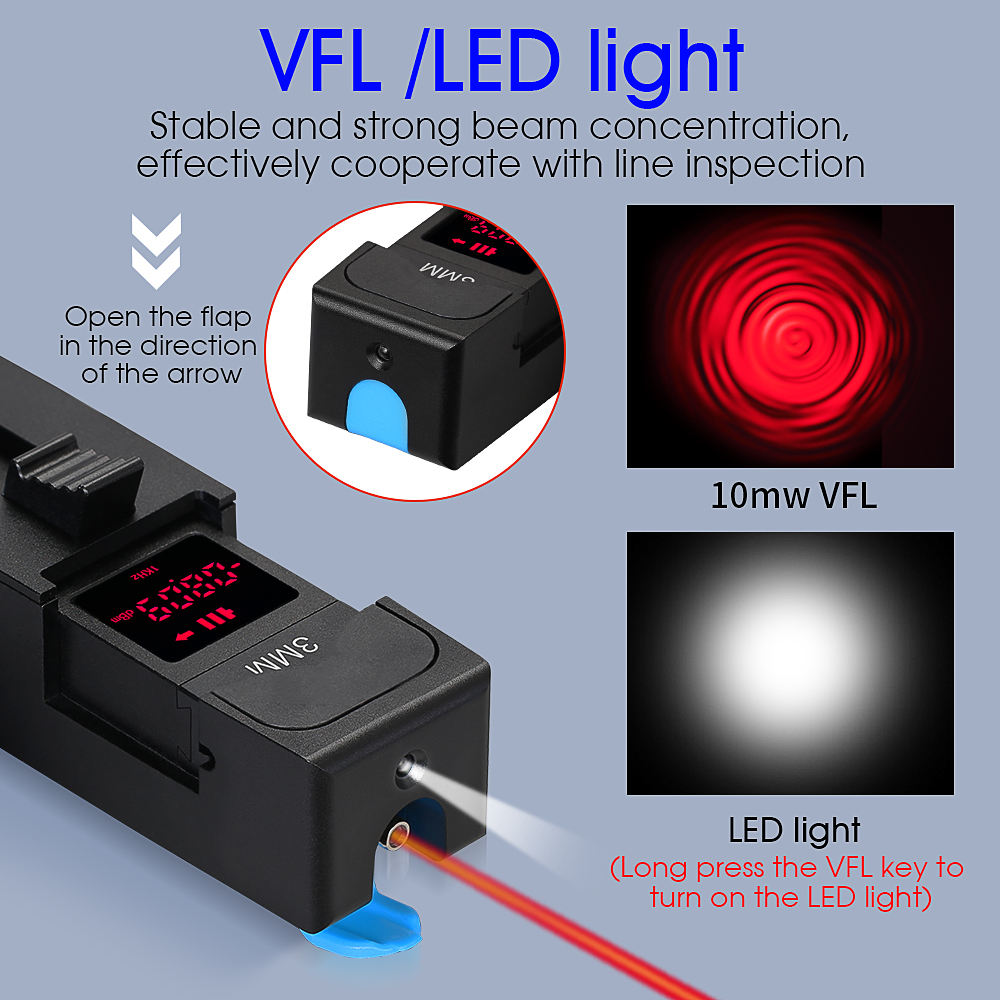

3. Equipped with visual fault locator function.

4. Test sensitivity -40dBm to 10dBm.

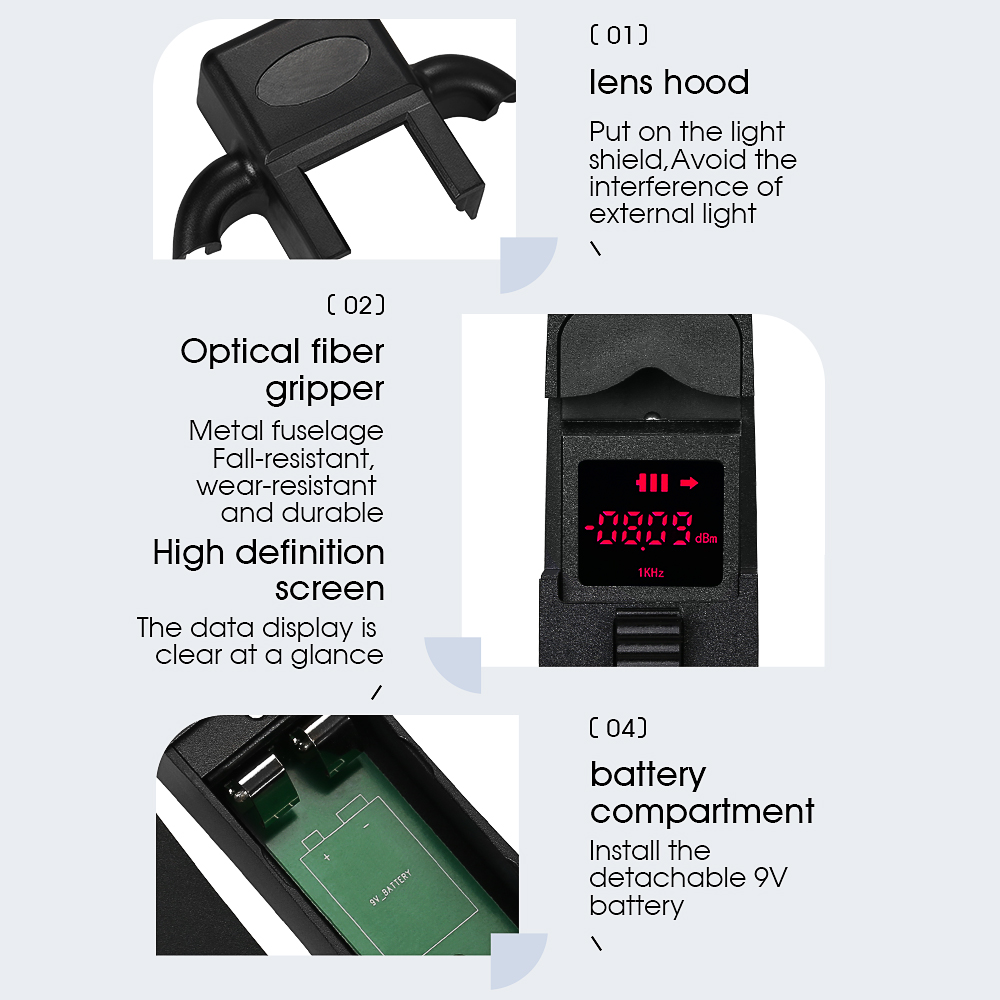

5. LED display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber.

6. sound alarm reminder, Low power reminder.

7. Comes with a hood to provide more accurate test results outdoors.

8. Recognize the signal of 270Hz, 1KHZ,2KHz.

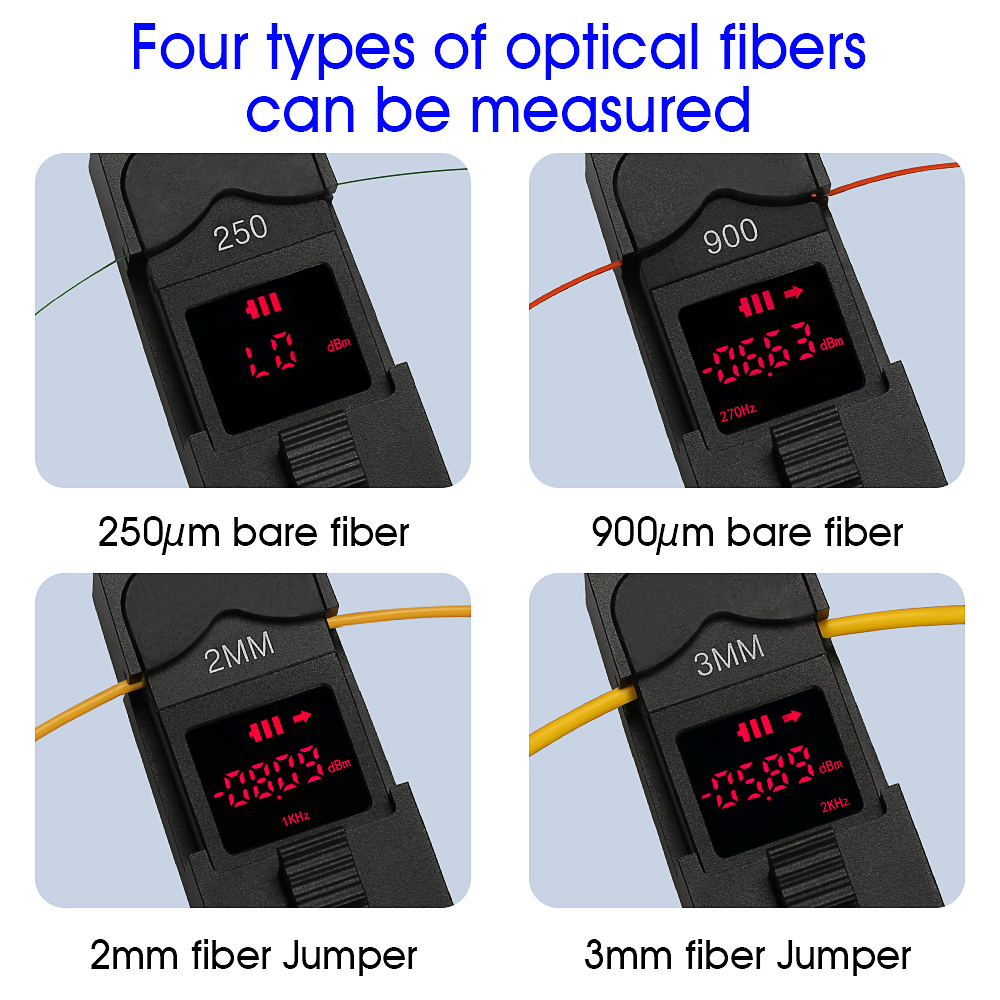

Types of Optical Fiber



250um bare fiber

900um bare fibre

2mm fiber jumper

3mm fiber jumper

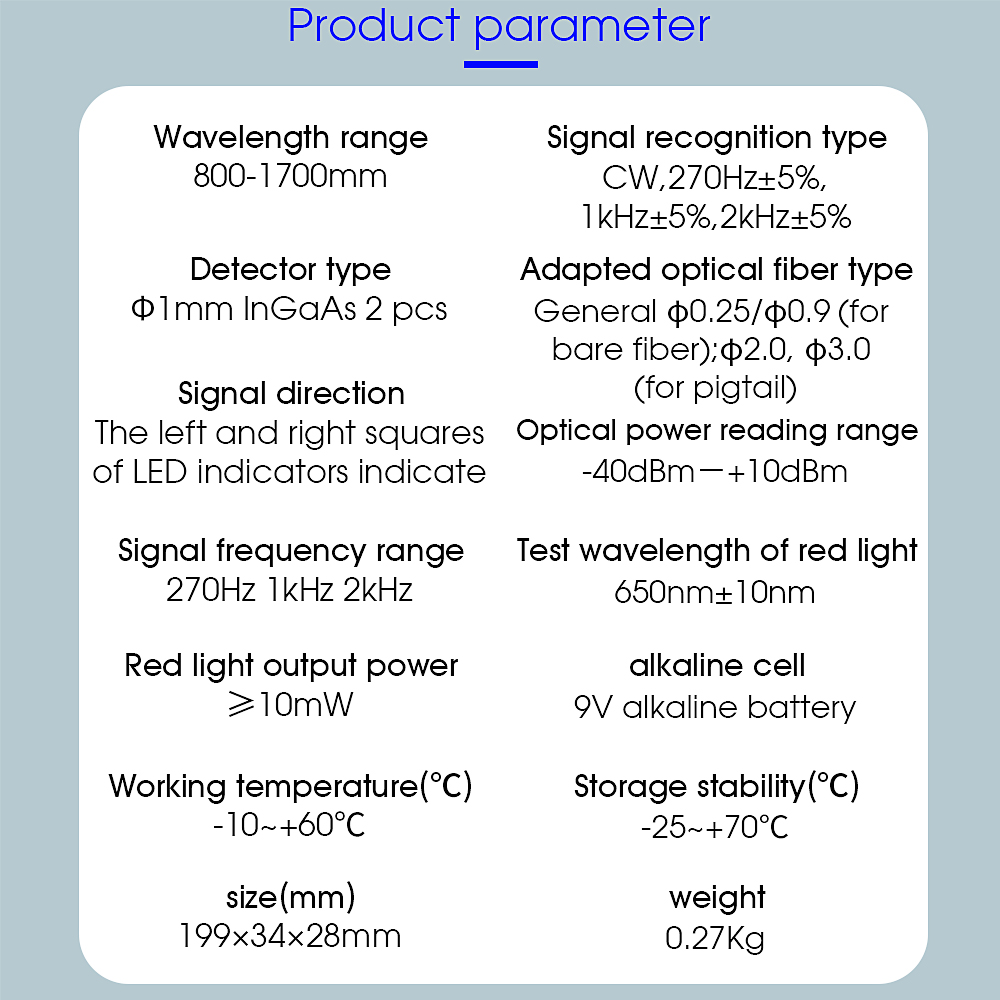

Product parameter



Wavelength range 800-1700mm



Detector type



1mm InGaAs 2 pcs





Signal direction

The left and right squares of LED indicators indicate



Signal frequency range



270Hz 1kHz 2kHz



Red light output power



>10mW



Working temperature (°C)



-10~+60°C



size(mm)



199x34x28mm



Signal recognition type



CW,270Hz+5%, 1kHz+5%,2kHz±5%



Adapted optical fiber type



General $0.25/$0.9 (for bare fiber); $2.0, $3.0 (for pigtail)



Optical power reading range



-40dBm-+10dBm



Test wavelength of red light



650nm±10nm



alkaline cell



9V alkaline battery



Storage stability (°C)



-25~+70°C



weight

0.27Kg
