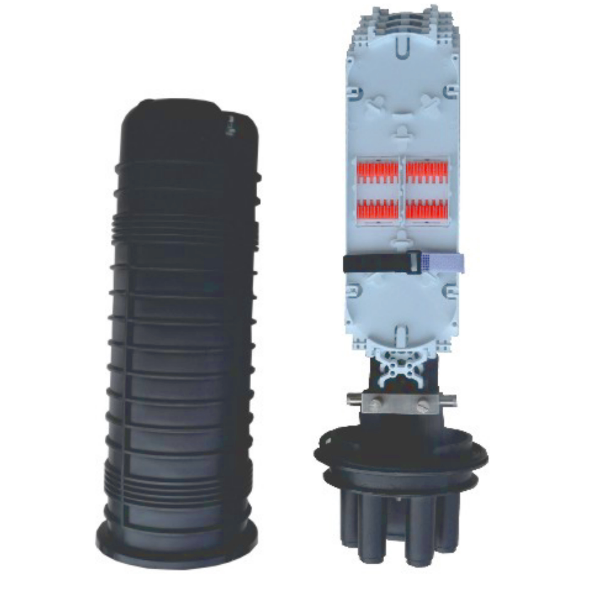

MANCH.FO.72-5D FTTH use

MANCHON FIBRE OPTIQUE 72 fibres.

equipé avec 3 cassettes, supporte 6 cassettes. AVEC JOINTS MÉCANIQUES, RÉUTILISABLES.

Product Description

MANCH.FO.725D type cable connector box of cap type series of :

Withi  5 in/out ports, one for drops cables

To be used for FTTH distribution, up to 16 drop cables

In the optical fiber transmission process, the products are through connection and differences in the function, and the male mention cable joint connection protection;

Suitable for all kinds of different diameter of cable through and differences in;

Can be used in overhead, hold pole, wall and buried installation;

Product good seal performance, installation simple operation, wide range, it is the best choice of the optical fiber connection.

IP protection level can reach IP68;

Can be installed 1 x “PLC shunt and 2 x for PLC shunt;

With four small round into the cable hole and a large oval into line hole;

Joint box shell by vulcanized rubber for seal;

Cable in and out of holes are hot shrinkage seal.

• can be convenient to increase or decrease the size according to the capacity of the melt flange quantity

• three Settings prevent cable is external pulled off

• molten flange space is big, easy to maintain and storage of optical fiber

Can, in ℃ to + 65 ℃ temperature range to use

Easy to repeat, open, no tools are required, waterproof, prevent gas leakage, flame retardant

• set vertical and horizontal design characteristics

• SGS ROHS testing the authentication

• suitable for aerial, buried, pipe use

Product parameters:

Item

Dimension(mm)

In/out  ports

Max. cable diameter(mm)

Max. capacity per tray

Disc number

Max capacity(bunchy fiber)

Seal method

MANCH.FO.72 DOM

Φ190×425

5

4ofΦ16

24cores

1-6

144cores

Mechanical seal

 Main components:

       No

  Name of components

     Quantity

                            Usage

        1

FOSC Cover

1 piece

Comprehensive protection joint

        2

Fuse fiber disc

According to the request

Fixed, save fiber and protect optical fiber hot melt pipe

        3

base

1 unit

Fixed inside and outside structure

        4

Plastic hoop

1 set

Fixed base and shell

         5

Type O sealing ring

1 set

Used to seal base and shell seal

        6

Plastic embolism

4 pcs

Seal no cable into the hole

Download:

Manch_fo_72_5d: PDF
