MTP-200-X Advanced OTDR

multi-functional  OTDR plate-form , with Laser source and PM, option Microscope

-Long-haul 45 dB

-Extra long-haul  50 dB

-PON OTDR  43 dB

– SM-MM OTDR  38dB

Catégorie : Étiquettes : ,

Product Description

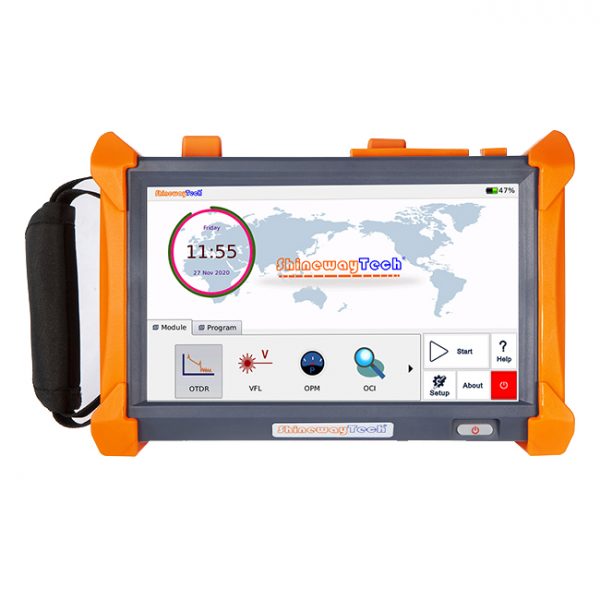

ShinewayTech® brand-new MTP-200X series OTDR are a major upgrade with outstanding 8-inch HD color touch screen, powerful platform performance, new operating system and smaller size than previous models. MTP-200X series are specially designed for full spectrum optical applications from access to backbone and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting.

Link Image (LM100) – REMOVING THE COMPLEXITY FROM OTDR TESTING

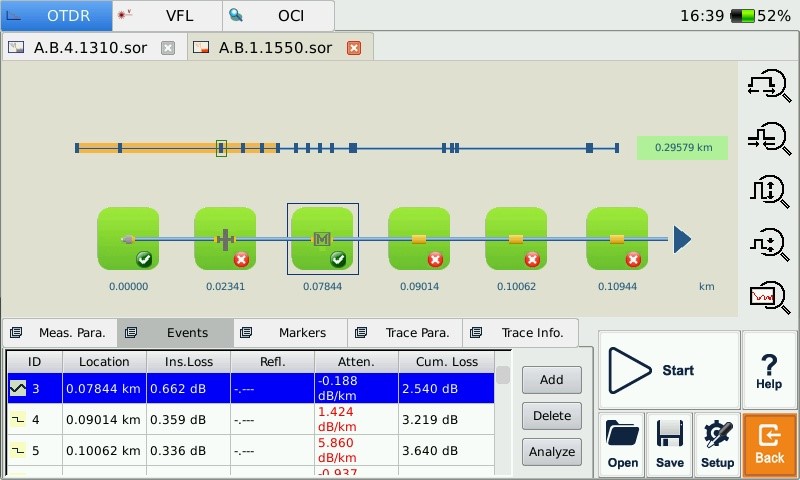

Link Image software helps technicians use an OTDR more effectively, without the need to understand or interpret OTDR results. It converts the graphic data points obtained from traditional single pulse trace into reflective or non-reflective icons which gives users a schematic view of the entire link.

● Icon-based fiber link view of all events

●Automatic pass/fail results

●Eliminates the need for OTDR expertise

  • Multi-wavelength testing
  • Unique combination of 96λ DWDM OTDR + 18λ CWDM OTDR + 1625nm PON OTDR (MTP-200X-T100)
  • Dynamic range up to 50dB
  • Short zone: EDZ 0.8m, ADZ 4.5m
  • Auto/Manual test and analysis

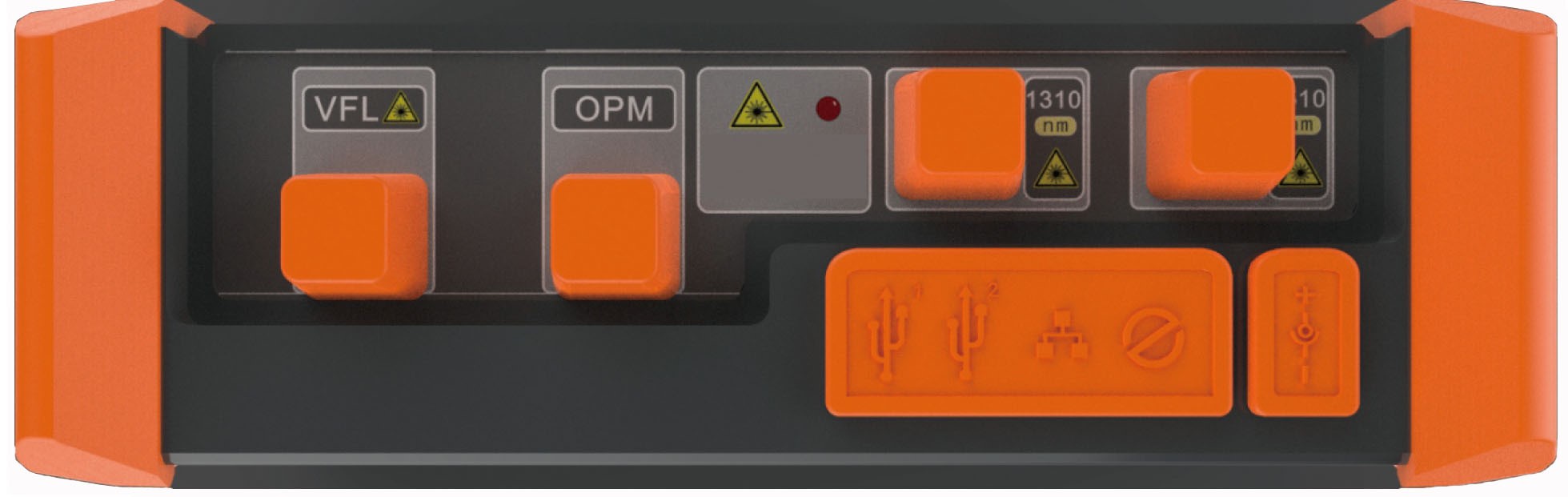

  • Visible laser source function
  • Live test and through splitter test (1625/1650nm with filter)
  • OTDR module up to four wavelengths, SM/MM Option

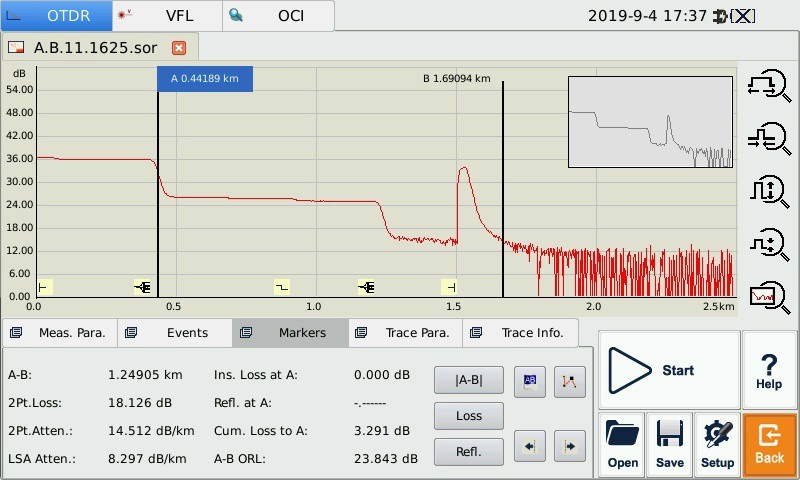

  • Fault locating, fiber length/loss/return loss measurement, connector/splice/ splitter/ macro bend/fiber-end detection
  • LAN/WAN/FTTx application

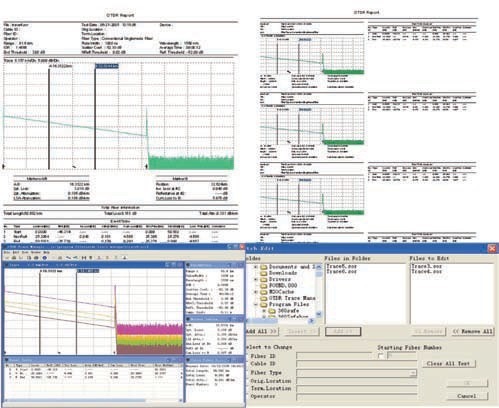

  • GR-196-CORE (.SOR) file format
  • Lightweight, 1.5kg
  • 8-inch HD color touch screen
  • Excellent user interface for easy operation
  • Water / dust / shock proof
  • Optimized power management: 6 hours continuous operation
  • Powered by Linux
  • VNC / VPN supported
MTP-200 Series
Display 8 inch TFT Touch Screen (800×480)
Connectivity USB×2; 10/100Mbit/s RJ-45×1
Memory 8GB
Power Supply Rechargeable Li-Ion Battery/AC Adapter
Battery Life 6 hours continuous operation
Working Temp. -20°C~+50°C
Storage Temp. -40°C~+70°C
Humidity 0~95% (Non-Condensing)
Weight 1.5kg
Dimensions (L×W×H ) 235×159×75mm
