PLC Splitter ABS box type

PLC splitter utilisé dans les réseaux EPON/GPON. avec ou sans connecteurs



Catégorie :

Product Description

ABS Splitter, Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters.Three packaging types are available

fan-out PLC splitter,

module PLC splitter,

or rack mount PLC splitter

Features:
Low insertion loss and PDL
High channel number
Compact size
High reliability
Wide operating wavelength and temperature range
Excellent channel uniformity
Telecordia GR-1221 and GR-1209
Specifications (1XN):
Port Configration 1X2 1X4 1X8 1X16 1X32 1X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss (dB) Typical 3,5 6,8 10,2 13,1 16,2 20,2
Max 4 7,4 10,5 13,5 16,9 21
Channel Uniformity (dB) 0,5 0,7 1.0 1.4 1,8 2
PDL (dB) 0,2 0,2 0.3 0.3 0,3 0,4
WDL (dB) 0,3 0,3 0.3 0.5 0,5 0,8
TDL (-40ºC ~ 85ºC )(dB) 0,5 0,5 0.5 0.8 0,8 1
RL (dB) > 55dB
Directivity (dB) > 55dB
Fiber Type G652D
Operating Temperature Range -40ºC ~ 85ºC
Specifications (2XN):
Port Configration 2X2 2X4 2X8 2X16 2X32 2X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss (dB) Typical 3,8 7,2 10,6 14 16,8 20,8
Max 4,2 7,8 11,2 14,6 17,9 21,5
Channel Uniformity (dB) 1 1,4 1.5 2.0 2,5 2,5
PDL (dB) 0,2 0,2 0.4 0.4 0,4 0,5
WDL (dB) 0,6 0,6 0.8 0.8 0,8 1
TDL (-40ºC ~ 85ºC )(dB) 0,5 0,5 0.5 0.8 0,8 1
RL (dB) > 50dB
Directivity (dB) > 55dB
Fiber Type G652D
Operating Temperature Range -40ºC ~ 85ºC
Bare fiber type:
Item 1×2  1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8
（L*W*H）(mm） 40*4*4 50*7*4 60*12*4 60*7*4 70*7*4 70*7*4
Mini  type:
Item 1×2  1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8
（L*W*H）(mm） 60*7*4 60*12*4 80*20*6 100*40*6 60*7*4 80*12*4 100*20*6
ABS Box type:
Item 1×2  1×4 1×8 1×16 1×32 1×64 2×2  2×4 2×8 2×16 2×32 2×64
（L*W*H）(mm） 100×80×10 120*80*18 140*115*18 100×80×10 120×80×18 140×115×18

Models :

TS-SPLT1*16SCBX 1*16PLC Splitter φ2.0/3.0MM  1Meter G657A fiber 120*80*18 SC/UPC
TS-SPLT08SCAPCB 1*8PLC Splitter φ2.0/3.0MM    1Meter G657A fiber 100*80*10 SC/APC
TS-SPLT16SCAPCB  1*16PLC Splitter φ2.0/3.0MM  1Meter G657A fiber 120*80*18 SC/APC

Datasheet  (pdf)

Related Products

splitter-1-32-PLC-Splittersplitter-1-32-PLC-Splitter

PLC Splitter Mini-type

Lire la suite
dsc_0918Fiber-Optic-Splice-Closure-Dome-OTSC-GJS07D-144 (1)

MANCH.FO.72-5D FTTH use

Lire la suite
drop-cable-patch-cord-SCapcdrop cabble-9

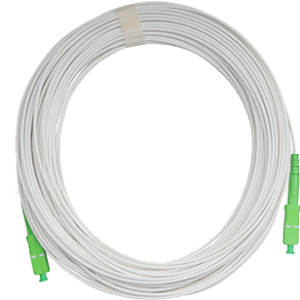

Drop cable usage interieur
