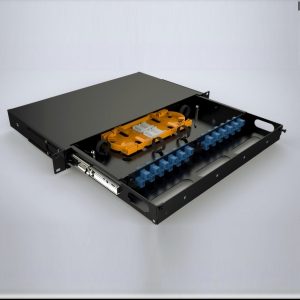

Tiroir optique 19″ avec 24 ports

Tiroir optique 19″ 1U, avec 24 ports SC/ST/FC , 4 entrées de câble, couvre jarretière, avec sortie latérale pour jarretière.

Catégorie : Étiquettes : ,

Product Description

* Easy Installation and Maintenance

* High Reliability and Stability

1. More faster and more convenient way to change fiber adaptors, no need to screw adaptors onto the panel, simply insert the adaptors to the panel.
2. 45° panel, can be changed according to the cable managing directions.
3. When fiber count is below 24, blind covers can be purchased as options to prevent dust and bugs.

* Fiber Cable Inlets/Outlets:
There are two In/Out-lets hole in the back side, and two In/Out-let holes on the left and right side. They can be used according to the working environment.

* Fiber Cable Holder:
Fiber Cable is fixed by screw to tight. Instead of tighten with cable tie, this method is faster and much more solid.

* 19'' rack mounting sliding type design with anti static electricity plastic sprayed, nice appearance

* Can be used for ribbon &bunch fiber cables

* Wide range af selection for industry standard connectors (ST, SC, FC, LC) single mode or multi mode

Dimension

  Body: 320(D) x 44(H) x 410(W) mm
Carton : 330(D) x 60(H) x 450(W) mm

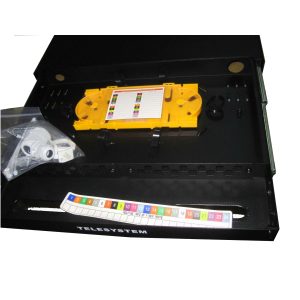

Splice Tray

  180mm x 110mm x 2pcs

Material

  Aluminum Alloy Plate

Weight

  N.W.: 2.8Kg / G.W.: 3.2kg

Color

  White/Black

       Reference                Designation
  TS-ODF24 Tiroir Optique 19" 1U,24 Ports (SC/ST/FC/LC)  Simplex Vide
  TS-ODF12DUPLEX  TIROIR OPTIQUE 19",12PORT SC DUPLEX, VIDE

Téléchargement:

Ts-odf24: PDF
