TS-IF1F2-P
Unmanaged industrial POE fiber switch/converter ,IEEE802.3af/at , DIN rail installation, 2x 10/100/1000Mbps Auto-sensing RJ45 ports+ 1x 1000Mbps SFP fiber ports.
If not use PEO power supply can be only 12VDC
TS-IF1F2-P is unmanaged the 10/100/1000 Mbps industrial POE fiber switch/converter, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af power on to 1 ~ 2 RJ45 ports
3. 2x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 1x 1000Mbps SFP fiber ports
5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard, 30W under at standard to each PoE port
10. Detect the PoE models of electrical equipments.
11. A store-and-forward switching mechanism
12. Operating environment temperature:-40 ° ~85 ° c
13. Power supply: POE power supply input voltage: 48V (max 52V), If not use PEO power supply can be only 12VDC
Single PoE power supply output power: 15.4W (port 1~2)
(802.3at standards required special instructions).
Product Name
10/100/1000Mbps Industrial POE Fiber Switch (1F+2TP)
Model No.
Port
1 x 1000Mpbs SFP port
SM：1310nm/1550nm，20Km
1490nm/1550nm，40~120Km
MM：1310nm，2Km
2×10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing）
Switching features
Transmission mode：storage and forward
System bandwidth：40Gbps (non-traffic jam)
Network media
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km
LEDs
Power, network, fiber
Power supply
POE power supply input voltage: 48V (max 52V),
(802.3at standards required special instructions)
Environment
Working temperature：-40°～ 85°C
Storage temperature：-40°～ 85°C
Working humidity：10%～90%，non-condensing
Storage humidity：10%～95%，non-condensing
Industry Standards
EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8
Traffic Control：NEMA-TS2
Vibration：IEC 60068-2-6
Freefall：IEC 60068-2-32
Shock：IEC 60068-2-27
Rail Traffic：EN 50121-4
Safety
CE Mark ,commercial
CE/LVD EN60950
Mechanical information
Shell：Corrugated metal shell
Safety class：IP40
Dimension：114 x 93x 35mm

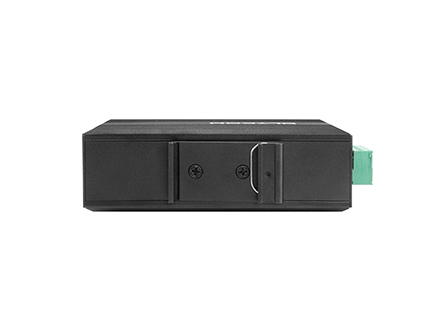

Mounting method：Din-rail mounting
